2.1. Job Execution: Overview¶

See Also

Overview¶

../_images/flow.png

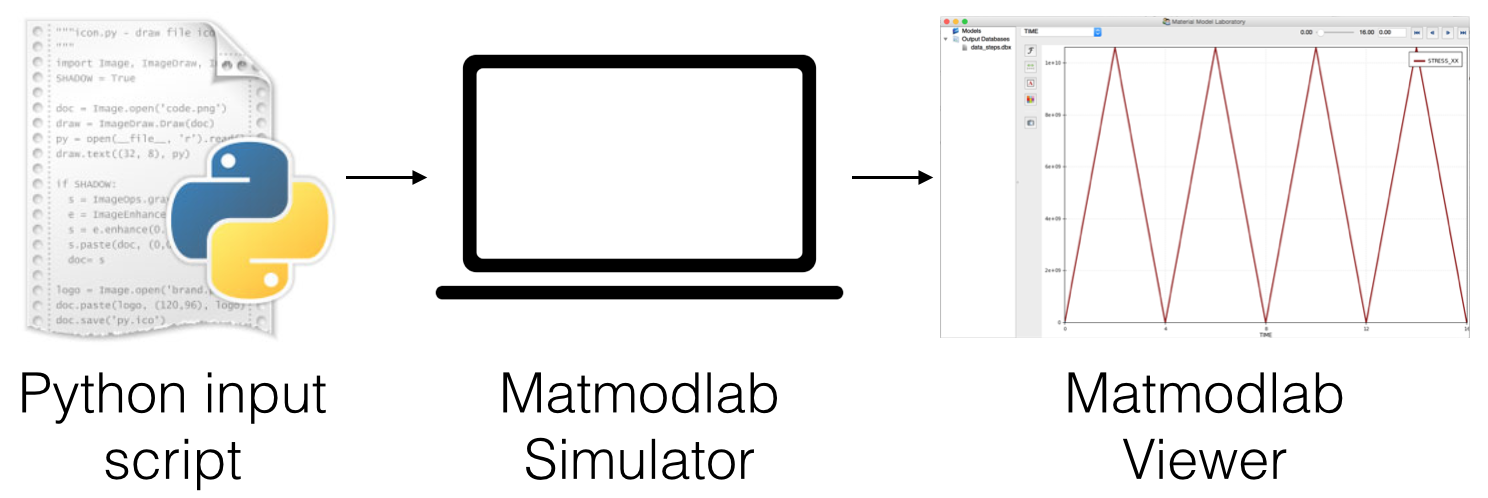

An analysis in Matmodlab is defined by an input script, which

is a Python script that imports the Matmodlab namespace; and
defines a MaterialPointSimulator object.

Once defined, the input script is executed with the mml run procedure and results viewed with the mml view procedure.

The Input Script¶

Most input scripts have the same basic layout:

Import the Matmodlab namespace:
```
from matmodlab import *
```

Instantiate the MaterialPointSimulator:

mps = MaterialPointSimulator('jobname')

Define the simulation steps. For example, a single step of uniaxial strain:
```
mps.StrainStep(components=(1, 0, 0))
```
Define the material model. For example, a linear elastic material:
```
mps.Material('elastic', {'K': 10, 'G': 8})
```
Run the job:
```
mps.run()
```

Executing the Input Script¶

Once written, the input script is executed by the mml run procedure:

$ mml run

Viewing the Results¶

Once executed, the model results are viewed with mml view procedure:

$ mml view
