2.4. Postprocessing Results¶

See Also

Overview¶

The Matmodlab.Viewer is an application that

is developed in TraitsUI and Chaco;
reads output databases created by the MaterialPointSimulator and creates 2D plots of the simulation data; and
is invoked on the command line or as a method of the MaterialPointSimulator.

Visualizing Results¶

After completion of a simulation, results can be viewed in one of two ways

MaterialPointSimulator.view() method call:
```
mps.run()
mps.view()
```
The mml script:
```
$ mml view job.exo
```

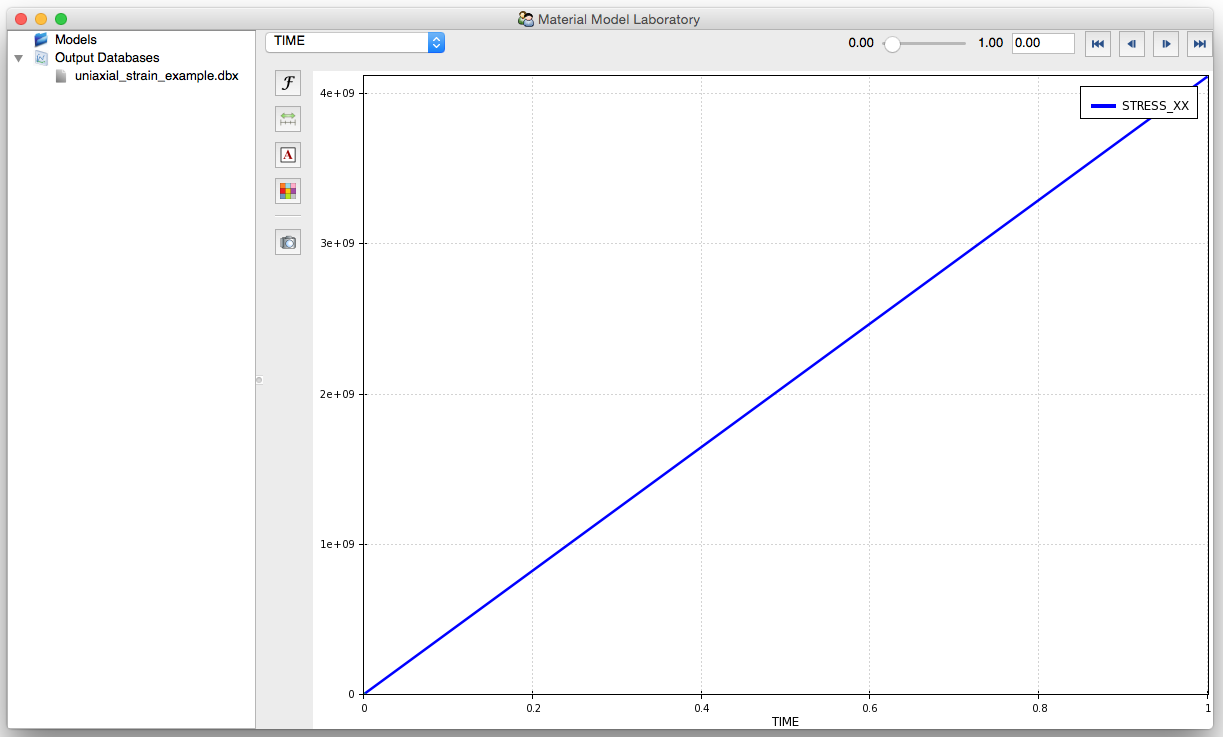

Whatever the method chosen, a TraitsUI window is opened…

../_images/mmv.png

Todo

Finish this section
